Realizations

11 Torches Billet Cutting Arm

France

Cutting machine for stainless steel composed of one arm equipped with 11 MDZ853 torches, able to subdivide in 12.

Scrap Cutting Machine

France

Refurbishing of a scrap cutting machine including 3 torches able to move on 4 axis (3 translations and 1 rotation) to cut the top and the sides of a coil without having to rotate it.

Scarfing Robot

USA



This robot is equipped with a MDZ2056 machine scarfing torch, mounted on a fully motorized arm to scarf both sides of a slab. The robot is completed by a slab flipping machine.

Vertical Burless Cutting Machines

USA

Slab cutting tables equipped with 4 MDZ853 machine torches below and 4 deburring systems over them (spyders).
After positioning the slab on the table, the table is hydraulically raised to allow the burr to be blown at the floor.

After installing one machine as a proof of, the facility has been upgraded with a total of 4 machines with cutting capacity of 160KT/month  – 1 920KT/year.

Slitting Machines

USA

Slab slitting machine (cut in half lengthwise) equipped with one MDZ853 torches and one DONZE deburring system (spyder).

The facility consists of 6 machines : 3 edge trimming, 2 center line slitting machines (used for tin product orders) & 1 end crop machine.

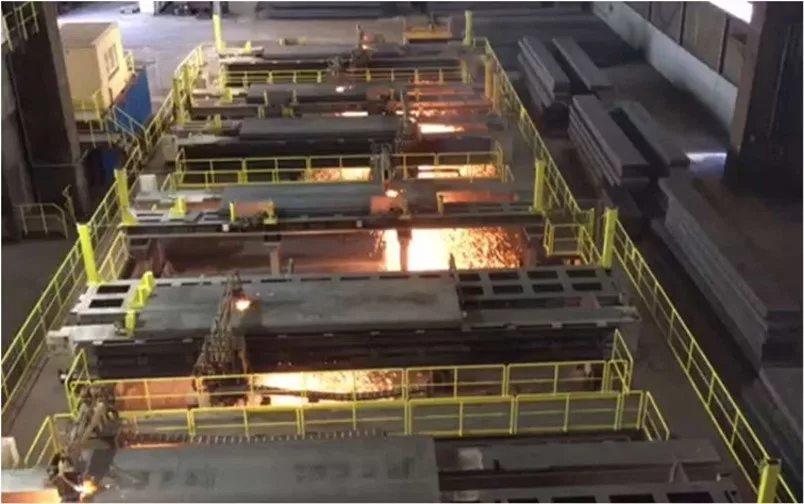

Slitting Machines

Germany

Slab slitting machine (cut in half lengthwise) equipped with one MDZ853 torches and one DONZE deburring system below (spyder).

The facility consists of 6 machines capable of center line slitting, taper correction & edge trimming.

Burrless Cutting Machines

Spain

New concept of horizontal subdividing machine, equipped with five MDZ853 torches and a DONZE deburring system below each to allow burrless cutting.

The facility is composed of 2 tables.

Burless Cutting Machine

Middle East

An improved version of the horizontal burless cutting machine with new arms, a surrouding platform, and still equipped with four MDZ853 torches and a DONZE deburring system below each.
